15.6 Inch 10 Points Open Frame Touch Display, Industrial PCAP Touchscreen Monitor, VGA+HDMI+DVI Port – 16:9

Price: $378.88
(as of Sep 21, 2024 12:03:35 UTC – Details)

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

GreenTouch 2C Series Open Frame Touchscreen Monitor

The GreenTouch’s 1562C LCD open frame touch monitor is a touch solution developed for automated information systems, gaming and entertainment,as well as light industrial automation controls . its based on the concept “Design for simple and convenience”, with proven GreenTouch expertise and reliability. Precise small frame design will be completely sealed touch screen, so that it has dust-proof, dirt-proof and water-proof function, and make it easier for customers to install 1562C in the cabinet.

Flexibility for Your Install

Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Design Your Solution with GreenTouch Self-Service Healthcare and ATM Industrial Automation Gaming and Entertainment

1 Front IP65 and IK08

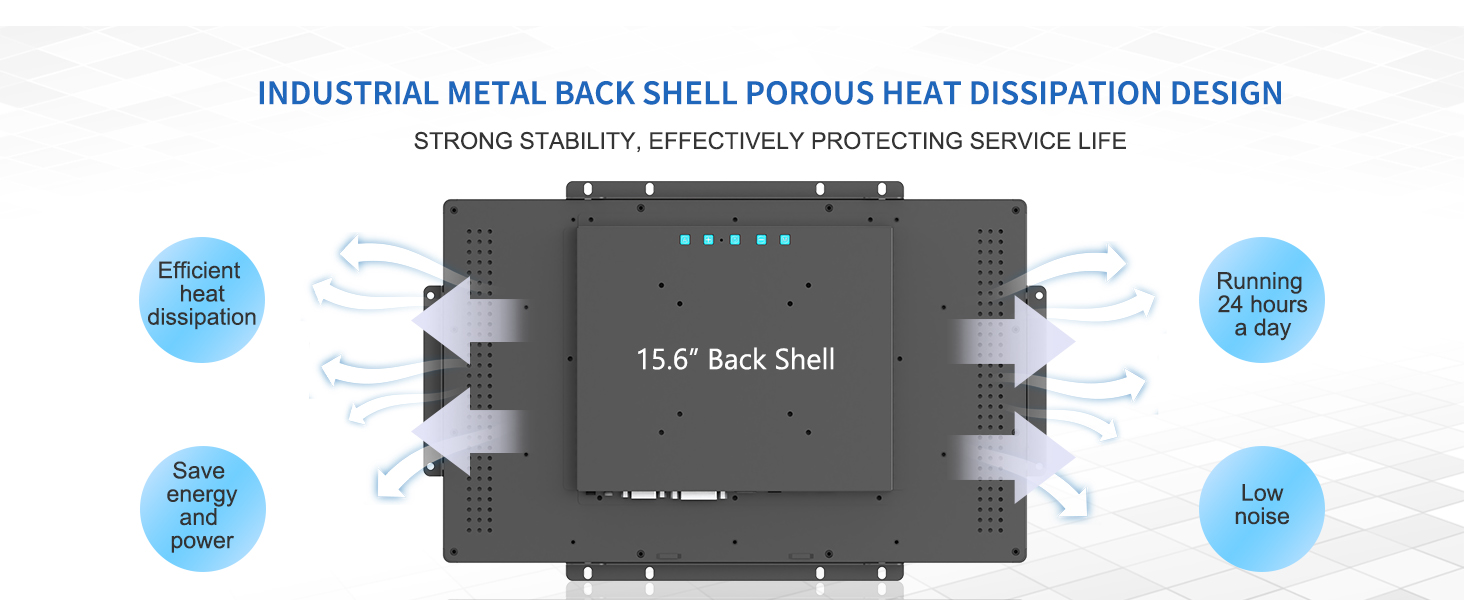

2 Stability

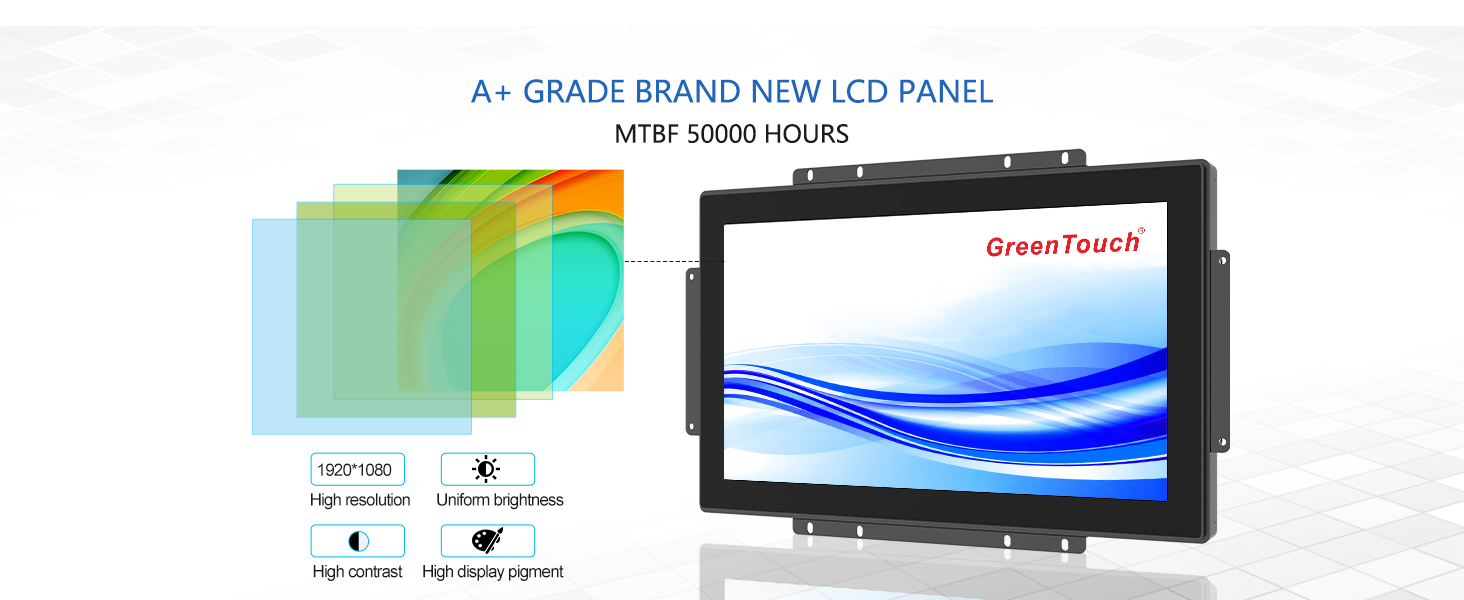

3 LCD Panel

4 Rich Interfaces

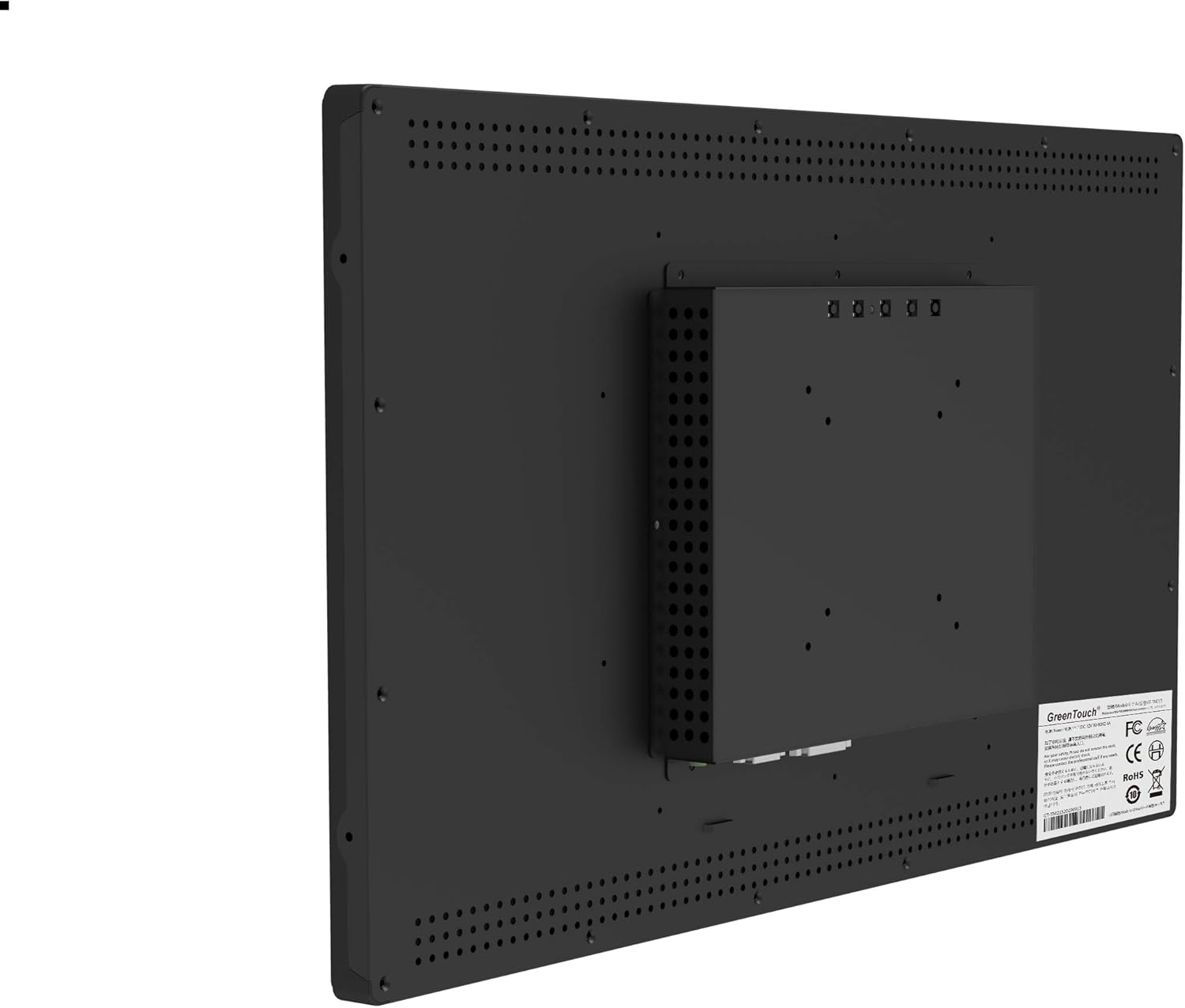

5 Installation

The display size 398mm(W) x248mm(H),Thickness: 47 mm Color Black Display type Active matrix TFT LCD , LED backlight Resolution 1920 X 1080 @ 60HZ Display colors 16.7M Brightness 400cd/m² Contrast ratio 700 : 1 Power External DC, input voltage DC12V View angel (from center) L/R:70/70;U/D:60/60 (Typ.)(CR≥10) Sweep frequency Horizontal: 31.5 – 60.2 kHz; vertical: 56.3 – 75 Hz Mounting options 100mm or 75mm VESA mounting,open bracket mounting Certification UL,cUL (Recognized), FCC, CE, CB, RoHS Operation temperature 0°C to 40°C Storage temperature -20°C to 60°C Operating Humidity 20% to 80% RH (no condensation) Storage Humidity 10% to 90% RH

TOUCH READY -GreenTouch touch solution adopts the latest projected capacitive solution with (G+G) 10-point touch ,it delivers great optical clarity and touch durability. 3mm thickness tempered cover glass provide front IK08 vandal-proof degree .
FEATUREED ELMENTS -The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.
RICH INTERFACES – Coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.
COMMERCIAL GRADE – The GreenTouch open frame touchscreen monitor delivers the quality and reliability GreenTouch is known for. We design, build and are responsible for the complete solution with touch integrated from the start.
STABILITY – Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
